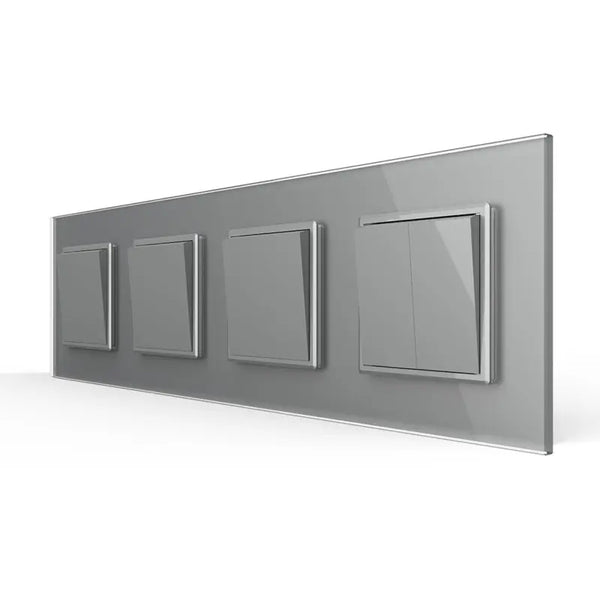

Livolo | Gray | 1+1+1+2 | Puls | Seesaw switch

Sale price €94,75

Tax included

Shipping calculated at checkout

Advantages
✔ Directly available from stock
✔ Simple installation
✔ High reliability and sustainability

In stock

Technical customer service

With showroom

Pick up by appointment possible

Pay in advance or afterwards

Available from stock (1-2 business days)

Product description

Experience the perfect combination of elegance and durability with the beautiful double livolo pulse rocking switch. This high -quality switch not only adds a touch of luxury to your interior, but also offers long -term performance and ease of use.

The Livolo Puls switch, also known as an impulse switch or pulse printer, is a switch that immediately springs back when it is released. This means that the connection is immediately broken when releasing the switch. Similar to a bell printer, the pulse switch connects when it is pressed and breaks the connection when releasing.

This pulse switch is ideal for use in, for example, a KNX home automation system, which is controlled by Puls printers or impulse switches. The ability to mount both horizontally and vertically makes this module suitable for any interior, whether you want a modern or traditional look.

Whether it is a stylish living room, a relaxing bedroom or a functional kitchen, the Livolo Puls Wip switch adds a hint of refinement to any room. Upgrade today your home with the Livolo Puls Wip switch and enjoy a luxurious look that fits perfectly with your lifestyle.

Specifications

Generally
Brand
Livolo
Appearance
Design pulse switch
Collection
WIP switches Pulse
Product
Livolo | Gray | 1+1+1+2 | Puls | Seesaw switch
Article number
VL-KP1112-15
Type of cover
Glass plate
Color glass
Gray
Switch control
Operating
Switch
Switch
Pressure surface switches distinguish themselves by their unique mechanism where the switching wip always returns to the original position after each operation. All switching rocks always go back in the same position for impressions
Pressure
Type of circuit
Type of circuit
Een puls-schakelaar geeft slechts kortstondig een impuls wanneer u deze indrukt.

Dit type schakelaar wordt vaak gebruikt in automatiseringssystemen, zoals bij deurintercoms, poorten, of systemen waar slechts een kort signaal nodig is om een actie uit te voeren.
Pulse
Technical data
Material
Terminated crystal glass
Dimensions
294 x 80 x 4mm

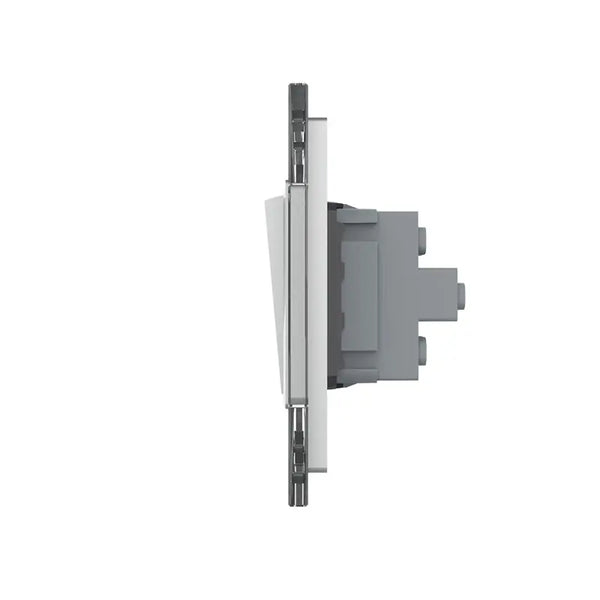

Built -in depth
28mm
Suitable for
AC ~ Alternating current / DC = DC
Nom. tension
AC ~ 250V / DC = 12-24V
Maximum ampére
10a per output
Maximum load
Maximum load
The maximum power that may be connected to the switch.

Example:
If you want to connect 10 LED lamps of 4 watts each, calculate the total power by 10 x 4 = 40 watts.

Make sure that the total calculated power falls within the specifications of the switch.
<2000 output
Work temperature
-10 ° C to 40 ° C
Relative humidity
Up to 95% LV
Number of contacts
5 exchange contacts - NO/NC
Contact type
Contact type
Wat is het verschil tussen NC en NO?
'NO' betekent normally open
Het contact is normaal gesproken open en sluit wanneer de schakelaar wordt bediend.
'NC' betekent normally closed
Het contact is normaal gesproken gesloten en opent wanneer de schakelaar wordt bediend.
Alternating contact
Configuration
Configuration
The switch is equipped with an alternating contact that can be used as a no (normally open) or NC (normally closed). This allows the switch to be used flexibly, depending on the desired switching function.
Can be used as a no (normally open) or NC (normally closed)
Suitable for
Impulse relay, time switches, KNX home automation systems and pulse inputs
Installation data
Assembly
Recess
Confirmation
Confirmation
Fielded boxes are housings that are placed in the wall for safely mounting and connecting switches and sockets. They offer protection for the wiring and make it possible to finish switches neatly.
Recessed box
Suitable for
4 built -in boxes
Merging
Merging
The module can be mounted in any desired position, giving you full flexibility during the installation. This makes it easy to adjust the module to any situation or installation needs
Horizontal, vertical
Suitable for
Suitable for
The module is compatible with both the round -usable built -in boxes and square flush -mounted boxes.

This makes it always suitable for your electrical installation.
Round and square flush -mounted box
Installation box depth
Installation box depth
Suitable for all standard built -in boxes with a minimum depth of 40 mm.

This makes the module compatible with almost all available recessed boxes, since no less deep variants are offered on the market.
≥ 40mm
Zero wire required
No

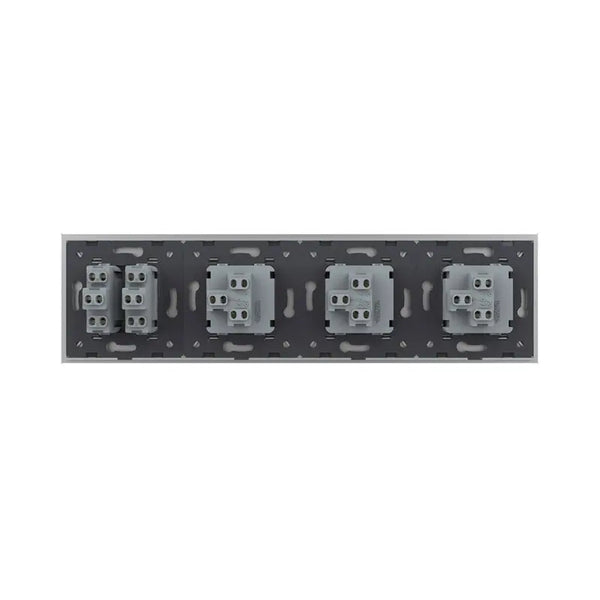

Connection method Wiring
Connection method Wiring
The module is equipped with screw connections for the wiring, which ensures a stable and reliable connection.

This type of connection offers a sturdy fixing of the threads, which guarantees the safety and durability of the electrical installation.
Screw connection
Wire thickness
1.5 - 2.5mm²
Strip length wire
10mm

Connection schedule

Draadkleuren
COM - Common
COM - Common
COM (Common) is the central connection point on the pulse printer. This contact makes a temporary connection to NO or NC, depending on the switching moment, as long as the button is pressed.

- Suitable for both 12–24V DC and 230V AC.
- Use COM for the incoming phase or steering voltage.
- The wire color is usually brown or red (phase or plus)
Gemeenschappelijk contact
NO - Normally Open
NO - Normally Open
No (normally open) means that this contact is open at rest and only temporarily connects to COM when the button is pressed.

-Ideal for applications where a pulse is needed, such as starting a clock relay, stairing machines, home automation inputs or calling installations.
- As soon as the button is released, the contact opens automatically again.
Normaal gesloten – maakt contact met COM als de schakelaar uit staat
NC - Normally Closed
NC - Normally Closed
NC (normally closed) means that this contact is closed at rest and is temporarily interrupted when the button is pressed.

- is rarely used with pulse printers, but can come in handy for, for example, interrupting circuits at a pressure (such as a reset function or stopping a process).
- As soon as the button is released, the closed contact with COM restores.
Normaal open – maakt contact met COM als de schakelaar aan staat

Package contents

  • Coal -stall
  • Module (s)
  • Confirmation Frame (s)
  • Manual

Becomes product completely delivered.
