Livolo | Gray | 1 | Module | On/off | Double -pole switch 16a

Sale price €14,95

Tax included

Shipping calculated at checkout

Advantages
✔ Directly available from stock
✔ User -friendly
✔ Simple installation

In stock

Technical customer service

With showroom

Pick up by appointment possible

Pay in advance or afterwards

Available from stock (1-2 business days)

Product description

Discover the versatility and reliability of the Livolo module Double Polige Switch, your ideal partner for controlling electrical electricity up to 16 amps. Whether you want to disable the lighting in your garden or make an air conditioning unit completely voltage -free, this switch guarantees safe and efficient operation.

Thanks to the striking red button and associated red LED status lighting you always have a direct view of the switching status. For example, you can check at a glance whether the two -pole main switch has been switched on, which contributes to a safe working environment.

The Livolo switch is specially designed to completely and reliably switch off both the phase and zero, which ensures a stable and safe electrical connection. The sleek and modern design of the switch makes him a stylish addition to every room.

Choose the Livolo module Double Polige switch and experience the convenience, quality and reliability you need for your electrical installations. An indispensable element for both professionals and do-it-yourselfers.

Specifications

Generally
Brand
Livolo
Collection
Product
Livolo | Gray | 1 | Module | On/off | Double -pole switch 16a
Article number
VL-FCMKV20A-2IP
Color module
Gray
Module name
Seesaw switch
Name switch
Double -pole switch
Switch control
Operating
Status lighting
Yes, red LED lighting
Technical data
Built -in depth
28mm
Nom. tension
AC 220-240V/ 50-60Hz
Maximum ampére
16a
Maximum load
Maximum load
The maximum power that may be connected to the switch.

Example:
If you want to connect 10 LED lamps of 4 watts each, calculate the total power by 10 x 4 = 40 watts.

Make sure that the total calculated power falls within the specifications of the switch.
<3600 Watt
Work temperature
-10 ° C to 40 ° C
Relative humidity
Up to 95% LV
Suitable for
Main switch for air conditioning, solar panels, washing machine, etc.
Installation data
Assembly
Recess
Confirmation
Confirmation
Fielded boxes are housings that are placed in the wall for safely mounting and connecting switches and sockets. They offer protection for the wiring and make it possible to finish switches neatly.
Recessed box
Merging
Merging
The module can be mounted in any desired position, giving you full flexibility during the installation. This makes it easy to adjust the module to any situation or installation needs
Horizontal, vertical
Suitable for
Suitable for
The module is compatible with both the round -usable built -in boxes and square flush -mounted boxes.

This makes it always suitable for your electrical installation.
Round and square flush -mounted box
Installation box depth
Installation box depth
Suitable for all standard built -in boxes with a minimum depth of 40 mm.

This makes the module compatible with almost all available recessed boxes, since no less deep variants are offered on the market.
≥ 40mm
Suitable for cover window
Suitable for cover window
Er zijn 3 soorten afdekramen.

- Glasplaten 1
- Glasplaten 2
- Glasplaten SR

De afdekramen zijn ook gecombineerd beschikbaar.

Selecteer dan ook het juiste afdekraam behorende bij de module.
Glass plates SR
Zero wire required
Yes
Connection method Wiring
Connection method Wiring
The module is equipped with screw connections for the wiring, which ensures a stable and reliable connection.

This type of connection offers a sturdy fixing of the threads, which guarantees the safety and durability of the electrical installation.
Screw connection
Wire thickness
1.5 - 2.5mm²
Strip length wire
10mm

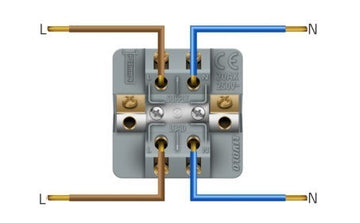

Connection schedule

Draadkleuren
L - Brown
Thread
N - Blue
Zero wire

Package contents

  • Livolo | Gray | 1 | Module | On/off | Double -pole switch 16a
  • Metal frame (for mounting on built -in box)
  • Manual

Delivery exclusive Cover window.
