Livolo Netherlands B.V.

Livolo | Gray | SR | Thermostat for 230V device

Selling price €60,40

Including VAT

Shipping calculated at checkout

Advantages
✔ Luxurious appearance
✔ Simple installation
✔ Energy saving

In stock

Technical customer service

With showroom

Pick up by appointment possible

Pay in advance or afterwards

Available from stock (1-2 business days)

Product description

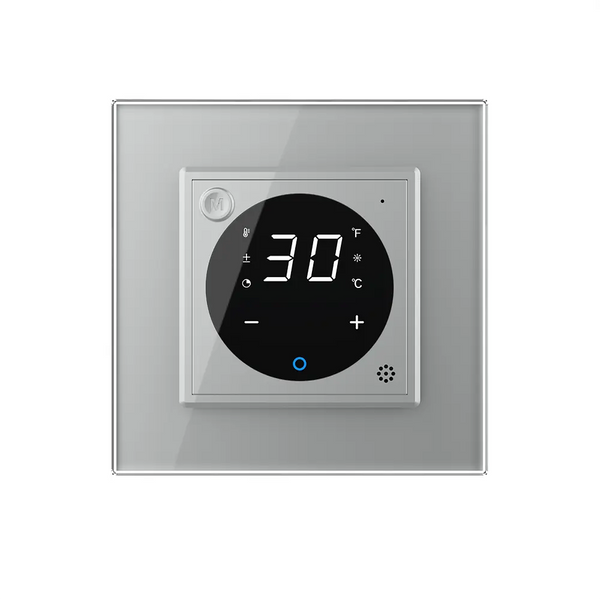

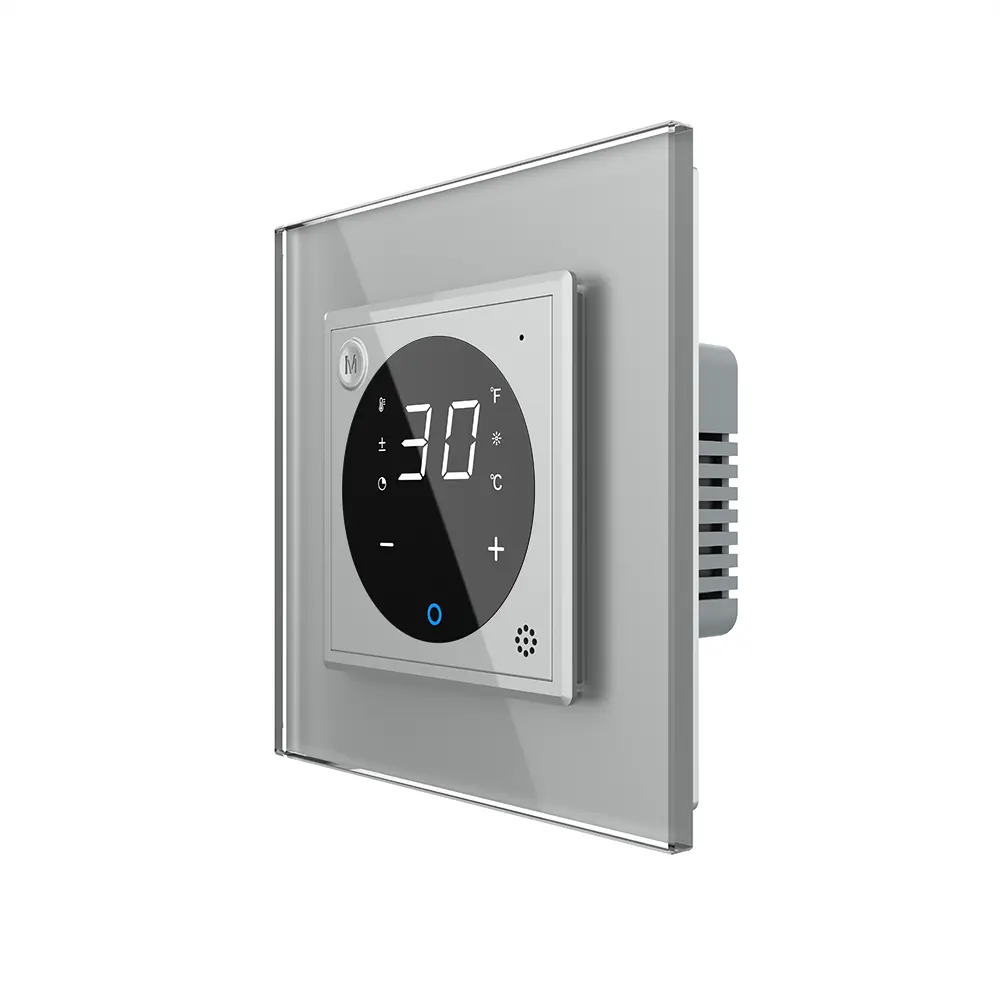

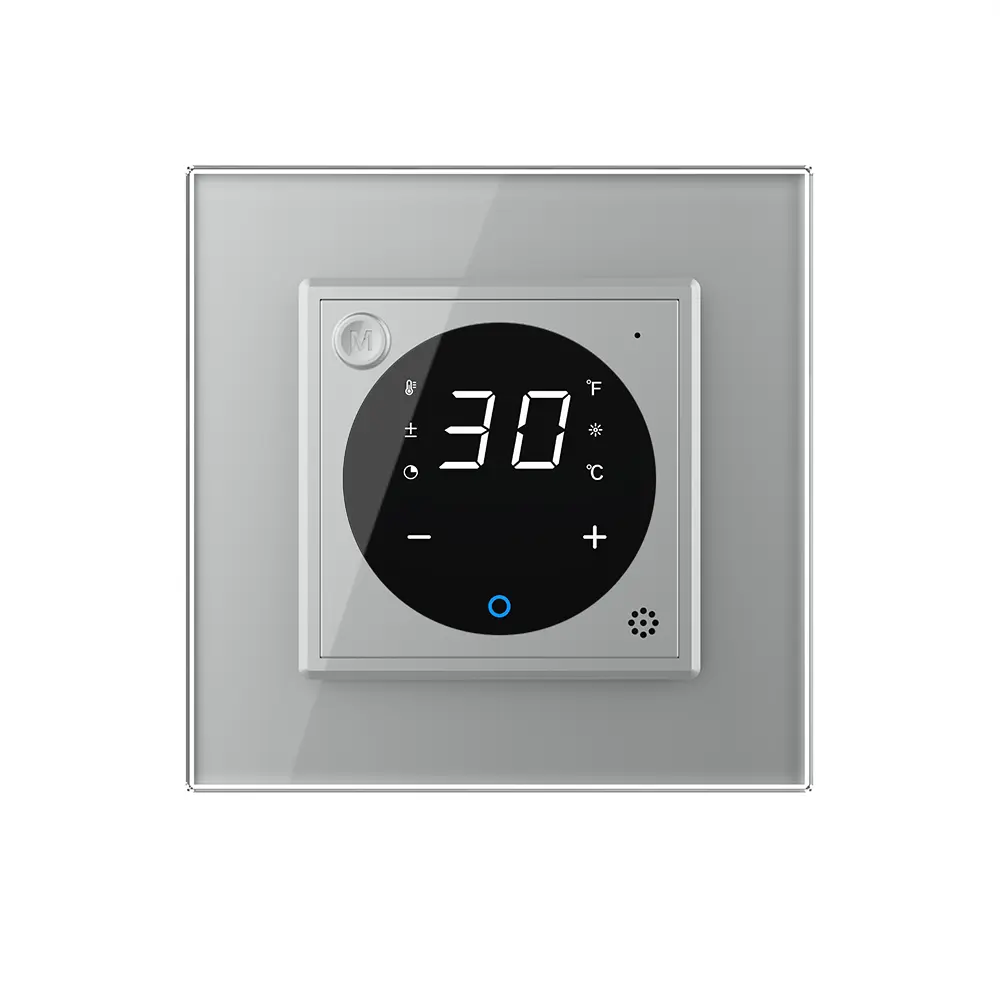

Livolo Thermostat Gray - Luxury Design Set With Glass Plate

Enjoy the perfect temperature with the Livolo thermostat in luxurious gray version, complete with a stylish glass cover plate. This design product not only offers advanced technology, but also an elegant and modern appearance. The combination of the thermostat module and the glass plate makes this product an ideal choice for every room that requires comfort, style and functionality. (lees verder)

Specifications

Generally
Brand
Livolo
Appearance
Design thermostat
Collection
Thermostats
Product
Livolo | Gray | SR | Thermostat for 230V device
Article number
VL-FCQ1-2IP-C
Type of cover
Glass plate
Color glass
Gray
Color module
Gray
Module name
Thermostat switch
Status lighting
Yes, blue and red LED lighting
Technical data
Manage from
Electric products on 230V
Material
Terminated crystal glass
Dimensions
80 x 80 x 4mm

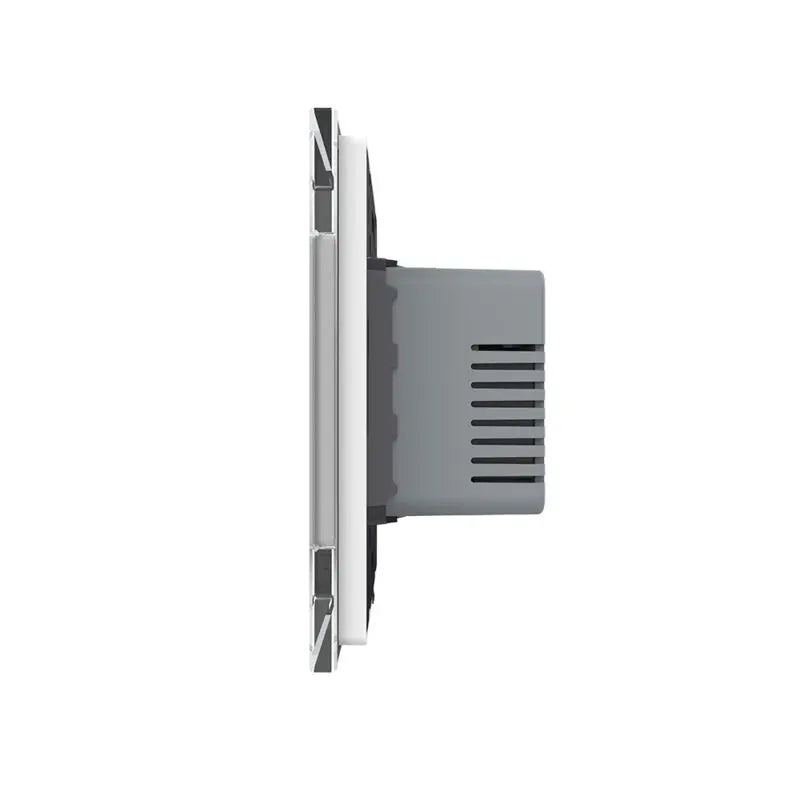

Built -in depth
33mm
Nom. tension
AC 220-240V/ 50-60Hz
Maximum ampére
16a
Maximum load
Maximum load
The maximum power that may be connected to the switch.

Example:
If you want to connect 10 LED lamps of 4 watts each, calculate the total power by 10 x 4 = 40 watts.

Make sure that the total calculated power falls within the specifications of the switch.
<3600 Watt
Work temperature
-10 ° C to 40 ° C
Relative humidity
Up to 95% LV
Temperature indication
Celsius ºC and Fahrenheit ºF
Temperature range
5 ° C to 35 ° C
Temperature sensor
Yes, built in
External temperature sensor
No (optional)
Cable
230VAC cable
Suitable for
Living room, kitchen, bedroom, bathroom, office, etc.
Suitable for electric
Underfloor heating, infrared panels, heating elements
Installation data
Assembly
Recess
Confirmation
Confirmation
Fielded boxes are housings that are placed in the wall for safely mounting and connecting switches and sockets. They offer protection for the wiring and make it possible to finish switches neatly.
Recessed box
Merging
Merging
The module can be mounted in any desired position, giving you full flexibility during the installation. This makes it easy to adjust the module to any situation or installation needs
Horizontal, vertical
Suitable for
Suitable for
The module is compatible with both the round -usable built -in boxes and square flush -mounted boxes.

This makes it always suitable for your electrical installation.
Round and square flush -mounted box
Installation box depth
Installation box depth
Suitable for all standard built -in boxes with a minimum depth of 40 mm.

This makes the module compatible with almost all available recessed boxes, since no less deep variants are offered on the market.
≥ 40mm
Zero wire required
Yes
Connection method Wiring
Connection method Wiring
The module is equipped with screw connections for the wiring, which ensures a stable and reliable connection.

This type of connection offers a sturdy fixing of the threads, which guarantees the safety and durability of the electrical installation.
Screw connection
Wire thickness
1.5 - 2.5mm²
Strip length wire
10mm

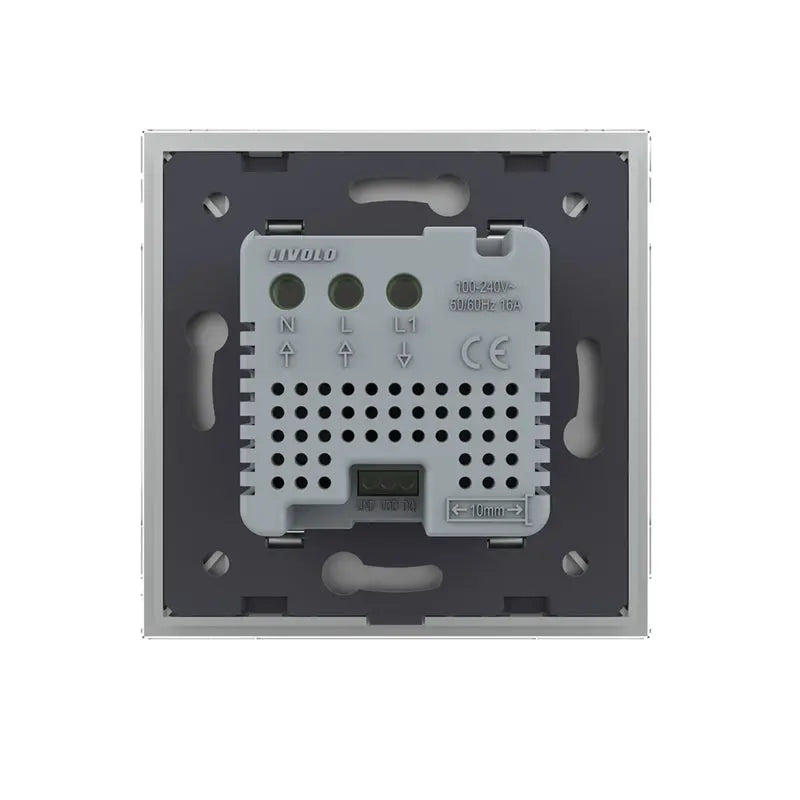

Connection schedule

Draadkleuren
L - Brown
Thread
N - Blue
Zero wire
Black
Switching wire

Package contents

  • Coal -stall
  • Module (s)
  • Confirmation Frame (s)
  • Manual

Becomes product completely delivered.
