Complete veranda set | Deluxe 1 | Veranda Lighting 12V | Plug and Play | 8 recessed spots Unpandable

Selling price €114,95

Including VAT

Shipping calculated at checkout

Advantages
✔ Comes complete as a set
✔ Simple plug & play installation
✔ Relieve your roof easily, quickly and safely

In stock

Loading image:

Technical customer service

With showroom

Pick up by appointment possible

Pay in advance or afterwards

Available from stock (1-2 business days)

Product description

Complete veranda lighting set - 12V plug & play
(8 LED recessed spots)

Create a warm, luxurious atmosphere under your veranda or roof with this complete set of veranda recessed spots from Livolo. Everything you need to get started right away is in it, 8 high -quality LED recessed spots (3 watts each), an LED driver with 1.5 meter plug cable, a distributor with 12 connections and a 5 -meter connection cable per spot. Thanks to the Plug & Play system you can easily connect the entire set, without tools or technical knowledge.


Luxurious appearance with high -quality materials

This set exudes pure class. The LED recessed spots are executed in maintenance -free aluminum, which not only gives a modern, sleek look, but is also extremely durable. The spots do not put on dust, do not rust, and retain their color year after year even outside, in rain or snow.


Complete and immediately ready for use

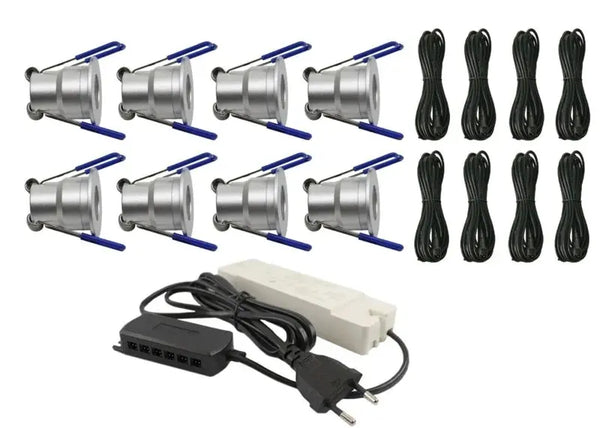

In this set you will receive everything you need to install atmospheric lighting under your veranda, carport or in your bathroom:

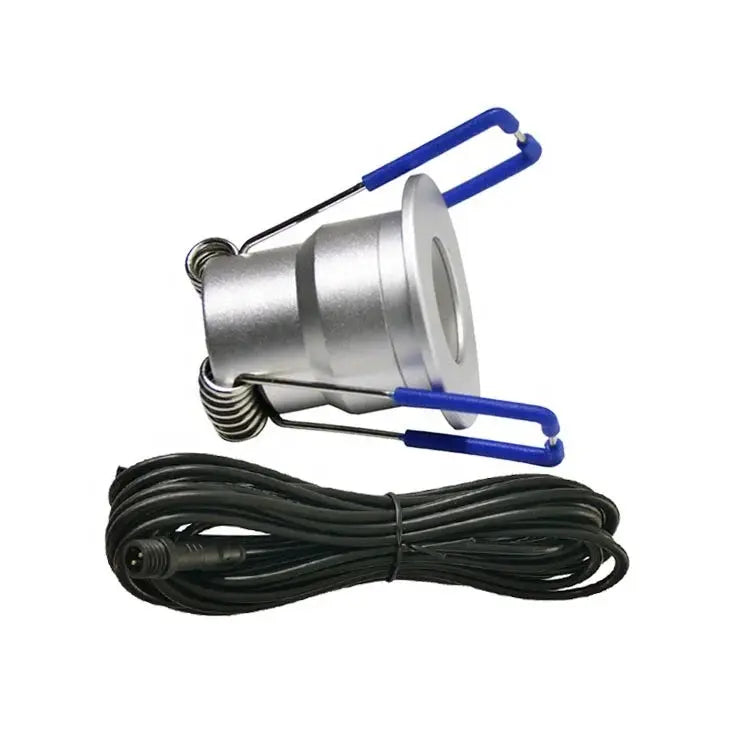

  • 8 LED recessed spots of 3 watts with warm white light (2700K)

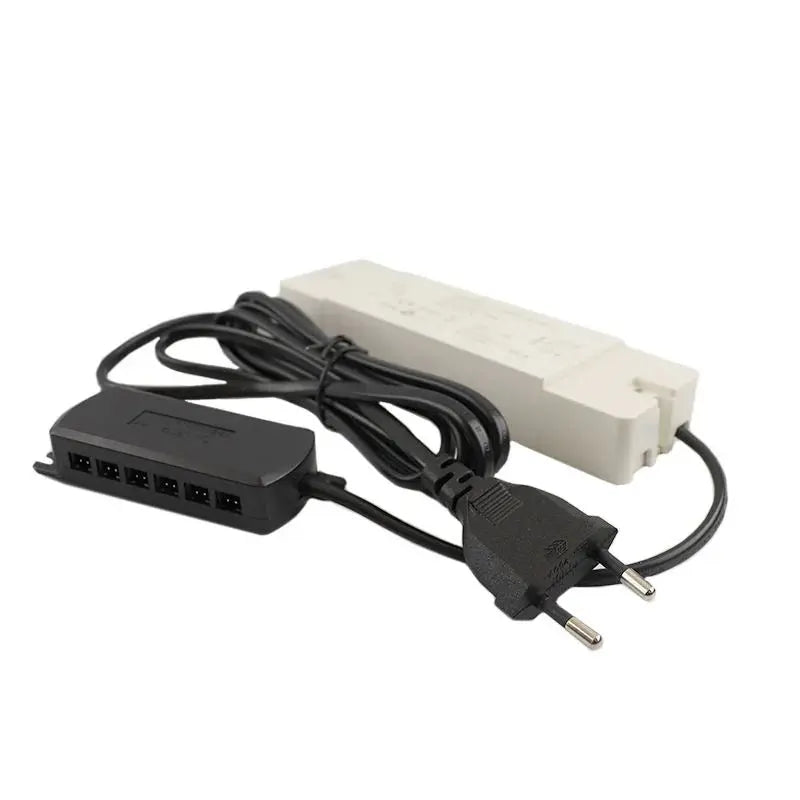

  • 1x LED Driver (12V, 40W) With 1.5 meters of plug cable
  • 1x 12-fever distributor With click system for direct connection of spots

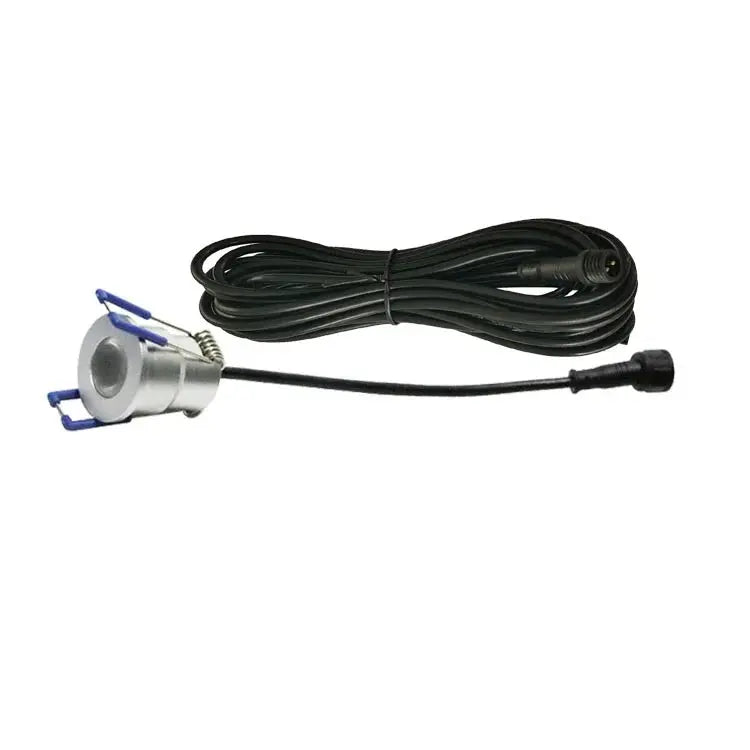

  • 8x 5 meters of waterproof connection cable (for every spot)

You can easily connect everything with the waterproof plug & play connections.


Warm white light with a cozy atmosphere

The 2700K color temperature of the spots provides a warm, cozy atmosphere. Ideal for relaxing under your roof, at the bath, or in the living room. With a light output of 200 lumens per spot you have sufficient light for functional and atmospheric applications.


Mini spots with low built -in depth

Thanks to the minimum saw size (28 mm) and a built -in depth of only 37 mm, these mini recessed spots fit in almost every ceiling. Perfect for low or narrow spaces such as verandas, roofing, bathroom ceilings or kitchen cupboards.


IP65 protection class-suitable for inside and outside

The LED recessed spots are fabric and water resistant (IP65). As a result, they are widely applicable:

  • Outside: Veranda, patio roof, carport, garden house
  • Inside: Bathroom (also above the shower), kitchen, bedroom, living room

NB: The spots are not suitable as floor or deck lighting.


Plug & Play Installation - Fast and easy

Thanks to the user -friendly plug & play system, you can easily connect all spots to the supplied distributor. Each spot comes with a 5 meter long cable with waterproof plug & play connector. You clit this directly in the distributor, which in turn is connected to the driver.

Do you want to bridge longer distances? Then use an extra 5 -meter extension cable to easily extend between the spots and distributor.


Safety first: 12V low voltage

This set works on a safe low voltage of 12 volts. This makes the system safely install and ideal for use in damp rooms.


Driver (IP20) - Mount in dry place or in welding box

The dimmable driver delivers 12V DC with a power of 40W sufficient to control 1 to 12 spots. This driver has an IP20 protection rate, which means that it can only be placed in dry spaces. Do you place it outside? Always mount it in an IP65 waterproof welding box to prevent damage due to moisture.

Ideal assembly places for a welding box are:

  • Porch
  • Garden house
  • Garage
  • Carport
  • Poorly insulated attic
  • Cellar

Smart switch with outdoor stop contacts

Do you want your lighting to be switched on automatically as soon as it gets dark? Then combine this set with one of our smart outdoor stop contacts:

  • Of day/night sensor - Lighting is automatically at sunset
  • Of time switch - Determine when the lighting switches on and off
  • Of Smart Home Integration - Control with your phone or via Livolo switches at home

All-in-one solution for atmospheric outdoor lighting

With this complete Veranda LED recessed spot set from Livolo you have everything to provide your porch, roof or bathroom with high -quality, attractive and energy -efficient lighting. The spots are powerful but subtle, easy to install, dimmable and smart to switch exactly as modern outdoor lighting should be.

Complete your veranda with this stylish, safe and smart LED recessed spot set from Livolo.
Plug in and enjoy the perfect atmosphere outside every day.

Specifications

Specificaties
Brand
Livolo
Product
Complete veranda set | Deluxe 1 | Veranda Lighting 12V | Plug and Play | 8 recessed spots Unpandable
Article number
VL-SET-D1-08-ND
Color housing
Matte silver
Lighting type
Veranda lighting
Application
Placement outside and/or damp rooms
Appearance
Design veranda recessed spot set
Technical data
Nom. tension
DC 12V - Via Adapter AC 220-240V
Cable
Click system
Assets
8 x 3 watt = 24watt
Color temperature in Kelvin
Color temperature in Kelvin
De lichtkleur van een LED-lamp bepaalt de sfeer en de helderheid van de verlichting. Bij warm-wit (rond de 2700K) creëert u een gezellige, warme uitstraling, ideaal voor woonkamers en slaapkamers. Helder-wit (rond de 4000K) zorgt voor een frisse en heldere verlichting, perfect voor werkruimtes of keukens. Dim-to-warm biedt de flexibiliteit om de lichtkleur te dimmen van helder-wit naar een warmer, zachter licht, waardoor u de sfeer eenvoudig kunt aanpassen aan uw behoeften.
2700K
Color lighting
Color lighting
De lichtkleur van een LED-lamp beïnvloedt de sfeer in een ruimte. Warm-wit licht zorgt voor een gezellige en sfeervolle ambiance, ideaal voor woonkamers, slaapkamers en eetkamers. Helder-wit licht biedt een frisse en energieke uitstraling, perfect voor keukens, werkruimtes en badkamers. Dim-to-warm licht biedt de mogelijkheid om de verlichting aan te passen van helder naar een warmer, zachter licht, wat ideaal is voor ruimtes waar u de sfeer wilt kunnen variëren, zoals de woonkamer of eetkamer.
Warm-white
Light output in Lumen
Light output in Lumen
De Lumen Watt verhouding (lm/W) geeft aan hoe efficiënt een lichtbron omgaat met energie. Hierbij delen we het aantal lumen door het wattage. Hoe hoger het getal, hoe efficiënter een product is qua energieconsumptie. LED verlichting heeft een aanzienlijk hogere lumen/Watt verhouding dan conventionele verlichting.
200 Lumen
Color reproduction (CRI)
Color reproduction (CRI)
De Lumen Watt verhouding (lm/W) geeft aan hoe efficiënt een lichtbron omgaat met energie. Hierbij delen we het aantal lumen door het wattage. Hoe hoger het getal, hoe efficiënter een product is qua energieconsumptie. LED verlichting heeft een aanzienlijk hogere lumen/Watt verhouding dan conventionele verlichting.
RA> 90
LED type
COB
Energy label
Energy label
Deze LED-lamp is voorzien van een energielabel van A t/m G, waarbij A het meest efficiënt is en G het minst efficiënt. LED-verlichting is echter de meest duurzame verlichtingsoptie die beschikbaar is. Zelfs als een LED-lamp een energielabel G heeft, bespaart deze nog steeds tot 70% energie in vergelijking met conventionele verlichting met hetzelfde label.

Door de vernieuwde energielabels lijkt het alsof LED-lampen minder zuinig zijn dan voorheen, maar dit is niet het geval. Waar vroeger een label A++ werd toegekend, kan dezelfde efficiënte LED-lamp nu bijvoorbeeld een label G krijgen. Dit nieuwe systeem is bedoeld om fabrikanten te motiveren nog duurzamere technologieën te ontwikkelen. U kunt er echter op vertrouwen dat deze LED-lamp uitzonderlijk energiezuinig is en aanzienlijk bijdraagt aan een lagere energierekening en een duurzamer gebruik.
G
Maximum ampére
3330mA
Maximum load
Maximum load
Het maximale Assets dat op de Adapter mag worden aangesloten.

Example:
Als u 8 LED lampen van elk 3 Watt wilt aansluiten, berekent u het totale Assets door 8 x 3 Watt = 24 Watt.

Zorg ervoor dat het totaal berekende Assets binnen de specificaties van de Adapter valt.
<40 Watt
IP value
IP65
Work temperature
-10 ° C to 40 ° C
Relative humidity
Up to 100% LV
Warm -up
Warm -up
The lamp immediately gives completely light and does not have to charge first.
Direct Light
Type
Integrated LED
Replaces Lamp from
Replaces Lamp from
Wilt u uw oude conventionele lamp vervangen door een energiezuinige LED-lamp? Met de filter "Vervangt lamp van (Watt)" kunt u eenvoudig een LED-lamp kiezen die qua lichtopbrengst overeenkomt met het wattage van uw oude lamp. Zo bent u verzekerd van de juiste verlichting met een lager energieverbruik.
Normal (halogen) lamp of ± 25 watts
Energy consumption
Energy consumption
Thanks to the low wattage, this LED lamp has a very low energy consumption. This not only ensures a significant saving on your energy costs, but also makes the lamp a sustainable and environmentally friendly choice.
Due to the low wattage, energy consumption is low
Space applications
Veranda, patio roof, garden shed, carport or for any other damp space
Compatibility with switches
Switches on/off
Switches on/off
You can use this LED lamp in combination with a standard on/off switch. Dimming is not possible in this configuration, but you can easily switch the lamp on and off.
Suitable for standard on/off switches
Dimensions
Fixture
Around
Height
36mm
Diameter
Ø 36mm
Sawmill
Sawmill
De zaagmaat geeft aan hoe groot de opening in het plafond moet zijn om de inbouwspot perfect te laten passen. U zaagt eenvoudig deze maat in het plafond, waarna u de spot moeiteloos in de opening klikt. Dit zorgt voor een strakke en nette afwerking.
Ø 28mm
Minimum built -in depth
Minimum built -in depth
De minimale inbouwdiepte geeft aan hoeveel ruimte er boven het plafond nodig is om de LED-spot correct te installeren. Dit is belangrijk om ervoor te zorgen dat de spot goed past en voldoende ventilatie heeft voor optimale prestaties en een lange levensduur. Controleer altijd of er voldoende ruimte beschikbaar is voordat u de spot installeert.
≥ 37mm
Cable length
Porch
15 cm fixed cable + 5 meter extension cable
Adapter
1.5 meters + 20 cm to 1-12 distributor
Installation data
Application
Out of use
Placement
Recess
Installation
Installation
Het Livolo Plug & Play systeem maakt de installatie eenvoudig en snel. U kunt deze set probleemloos combineren met al onze andere tuinverlichting. Alles werkt naadloos samen en is volledig Plug & Play, zodat u geen technische kennis nodig heeft om de verlichting te installeren.
Simple plug & play installation with supplied cables
Watertight
Waterproof turning connection, specially designed for outdoor use
Extensability cables
Extension cables and splitters are available separately
Connection
Connection
De aansluiting is een adapter met een stekker die u eenvoudig kunt aansluiten op verschillende buitenstopcontacten die wij aanbieden.

Wij bieden stopcontacten aan met een schemersensor, die automatisch aan- en uitgaat op basis van zonsondergang en zonsopgang. Daarnaast kunt u kiezen voor een stopcontact met een tijdklok of een Smart Home buitenstopcontact, waarmee u de verlichting kunt bedienen met uw telefoon en automatische schakeltijden eenvoudig kunt instellen.
Connect the plug to the socket and the installation is complete
Adapter
Adapter
De adapter is geschikt voor het totaal opgegeven vermogen in Watt. Hiermee kunt u verschillende Livolo tuinproducten aansluiten, zolang het totale vermogen van de aangesloten verlichting niet meer dan het maximalen vermogen in Watt bedraagt.

Als u meer dan 24 Watt aan tuinverlichting wilt gebruiken, bieden wij ook een 100 Watt adapter aan. Deze kunt u eenvoudig vervangen om meer verlichting aan te sluiten.
Supplied adapter, suitable for 40 watts (12 veranda spots of 3 watts)
Complete Veranda Set | Deluxe 1 | Veranda verlichting 12V | Plug and Play | 8 Inbouwspots | Dimbaar Livolo Nederland Complete Veranda Set | Deluxe 1 | Veranda verlichting 12V | Plug and Play | 8 Inbouwspots | Dimbaar Livolo Nederland

Package contents

  • Complete veranda set | Deluxe 1 | Veranda Lighting 12V | Plug and Play | 8 recessed spots Unpandable
  • Manual

Becomes product completely delivered.
