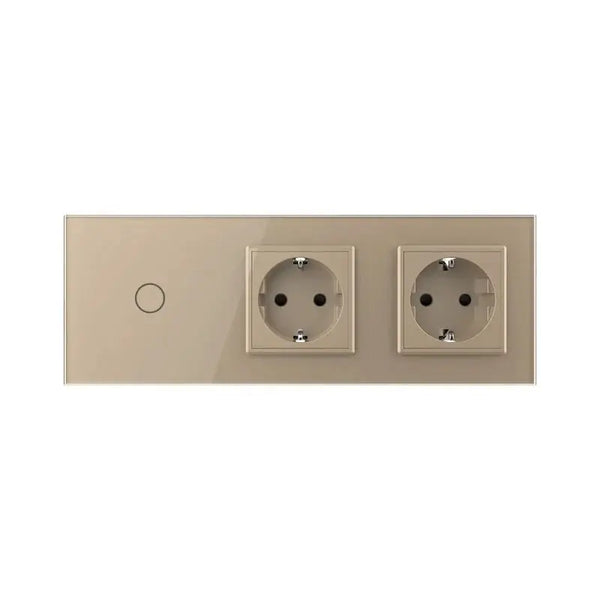

Livolo | Gold | 1+SR+SR | Dimmer | Switch with double wall socket

Sale price €98,80

Tax included

Shipping calculated at checkout

Advantages
✔ Glass Touch Operation
✔ Integrated LED background lighting
✔ High reliability and sustainability

In stock

Technical customer service

With showroom

Pick up by appointment possible

Pay in advance or afterwards

Available from stock (1-2 business days)

Product description

Upgrade your living space with the beautiful livolo glass dimmer switch with wall sockets, a sample of modern lighting control. This switch is perfectly suited to operate one lamp or a group of lamps separately, giving you the complete control over your lighting. With the built -in dimmer you can effortlessly dim the LED lighting gradually to the desired brightness, and the handy memory function remembers the last brightness set.

The unique touch control and the LED orientation background lighting add a contemporary element to this switch. When switching on, the background lighting changes from blue to red, which means that not only the lamp is on, but also changes the atmosphere in your room.

Livolo Dimmer switches with wall sockets are available in trendy color options and add a beautiful, luxury designer appearance to your home. Experience the pleasant ease of use, the long service life and the child safety, and benefit from efficient energy management. Enrich your living space with the perfect combination of style and functionality thanks to Livolo.

Specifications

Generally
Brand
Livolo
Appearance
Design combination switch
Collection
Touch switches combination
Product
Livolo | Gold | 1+SR+SR | Dimmer | Switch with double wall socket
Article number
VL-FCD1EU11-13
Type of cover
Glass plate
Color glass
Gold
Name switch
Dimmer switch
Switch control
Switch control
Instead of traditional switches with buttons, Livolo uses touch -sensitive panels that respond to the lightest touch, with a simple touch, switch on your lighting.

This makes operating your lighting effortlessly. The touch control panels give your space a sleek, stylish look. No excellent buttons, but a smooth, shiny surface that exudes elegance.

The touch control is of high quality and designed to last for many years without losing functionality.
Touch operation
Background Lighting
Background Lighting
One of the unique characteristics of Livolo touch switches is the subtle LED background lighting.

Our switches are equipped with a small, round light that lights up blue. When the switch is touched and activated, this light changes from blue to red, so that you can see at a glance whether the lighting is on or off.

Het LED-lichtje verlicht de kamer niet, maar geeft een verfijnde Appearance aan uw interieur.
In addition, this relief ensures that you can always see the status of your switches, which is especially useful for, for example, the switch in your stairwell or to which the outdoor lighting is connected.
Yes, LED Blue and Red
Type of circuit
Type of circuit
Een dimmer biedt de mogelijkheid om de lichtsterkte handmatig aan te passen.

Dit maakt het mogelijk om de sfeer in een ruimte te variëren, van helder functioneel licht tot gedempte sfeerverlichting.

Dimmers zijn vooral geschikt voor woonkamers, keukens, slaapkamers of eetkamers waar flexibiliteit in verlichting gewenst is.
Dimmer
Number of light points
Number of light points
This indicates how many individual lamps you can switch independently of each other with this switch.
1 light point or 1 light points group
Number of wall sockets
Number of wall sockets
This indicates how many individual sockets are present on this combination
2 wall sockets
Technical data
Material
Terminated crystal glass
Dimensions
223 x 80 x 4mm
Built -in depth
33mm
Nom. tension
AC 220-240V/ 50-60Hz
Touch switch
2 Ampére per output
Touch switch
<450 output
Touch switch
> 5 Watt minimal load
Wall socket
16 Ampére
Work temperature
-10 ° C to 40 ° C
Relative humidity
Up to 95% LV
Dimmable
Dimmable
The light switch is activated by slightly touching the round touch area in the middle of the glass plate.

Some touch: Lighting comes on.

Some touch: Lighting goes out.

Long -term touch: the lighting gradually dims from high to low; Let go of the desired light intensity.

The switch is also equipped with a memory function, so that the last set light intensity is remembered and is automatically resumed when switching on
Yes, via touch + memory function
Internal memory
Internal memory
The module has an internal memory that stores the last dimstand. When you switch on the dimmer the next day, the same dimension is automatically resumed last time.
Yes, last dimstand will continue to remember
Feat
Feat
The dimmer is equipped with a function in which the lighting is gradually switched on and off. This causes less wear on your LED lighting, which extends the life of the lamps.
SoftStart and Softuit
Child security
Child security
Alle Livolo stopcontacten zijn standaard voorzien van ingebouwde kinderbeveiliging. Dit mechanisme voorkomt dat kinderen voorwerpen in het stopcontact steken en biedt zo extra veiligheid in huis.

Dankzij deze geïntegreerde bescherming is het niet nodig om later extra afdekplaatjes of losse beveiligingen te plaatsen. Dit is vooral handig voor gastouders: bij een controle is de kinderbeveiliging al aanwezig en voldoet uw stopcontact direct aan de veiligheidsnormen.

Ondanks de ingebouwde beveiliging merkt u hier niets van bij normaal gebruik. Het insteken van een stekker gaat net zo soepel als bij een standaard wandcontactdoos, zonder extra weerstand.
Yes
Randoma
Yes, grounding (type F)
Compatibility with lighting types
Dimable phase tightening
Yes, Leading-Edge, RL, Triac, Mosfet
Dimmable phase cutting off
Yes, Trailing-Edge, RC, Tronic
Suitable for
Suitable for
This dimmer is suitable for standard dimmable LED and halogen lighting.

Note: lamps with a 3-speed dim function or WiFi/remote control (Smart Lamps) are not compatible with dimmers and may not be connected to this.
Dimmable LED and halogen lighting
Installation data
Assembly
Recess
Confirmation
Confirmation
Fielded boxes are housings that are placed in the wall for safely mounting and connecting switches and sockets. They offer protection for the wiring and make it possible to finish switches neatly.
Recessed box
Suitable for
3 built -in boxes
Merging
Merging
The module can be mounted in any desired position, giving you full flexibility during the installation. This makes it easy to adjust the module to any situation or installation needs
Horizontal, vertical
Suitable for
Suitable for
The module is compatible with both the round -usable built -in boxes and square flush -mounted boxes.

This makes it always suitable for your electrical installation.
Round and square flush -mounted box
Installation box depth
Installation box depth
Suitable for all standard built -in boxes with a minimum depth of 40 mm.

This makes the module compatible with almost all available recessed boxes, since no less deep variants are offered on the market.
≥ 40mm
Installation
Installation
All Livolo products are designed to easily connect to your existing standard wiring.

No extra wiring is required, which ensures trouble -free installation and direct compatibility with your current electrical system.
Use your standard wiring
Zero wire required
Yes
Connection method Wiring
Connection method Wiring
The module is equipped with screw connections for the wiring, which ensures a stable and reliable connection.

This type of connection offers a sturdy fixing of the threads, which guarantees the safety and durability of the electrical installation.
Screw connection
Connection method Wiring
Connection method Wiring
De wandcontactdoos is uitgerust met een Push-in draadverbinding, waardoor de bedrading snel en eenvoudig kan worden aangesloten zonder gereedschap.

Deze verbinding biedt een veilige en betrouwbare aansluiting, wat de installatie aanzienlijk vereenvoudigt en tijd bespaart.
Push-in Wire connection
Wire thickness
1.5 - 2.5mm²
Strip length wire
6mm

Connection schedule

Draadkleuren
L - Brown
Thread
N - Blue
Zero wire (only required for the wall socket)
PE - Groen/Geel
Earthwear
Black
Switching wire

Package contents

  • Coal -stall
  • Module (s)
  • Confirmation Frame (s)
  • Manual

Becomes product completely delivered.
